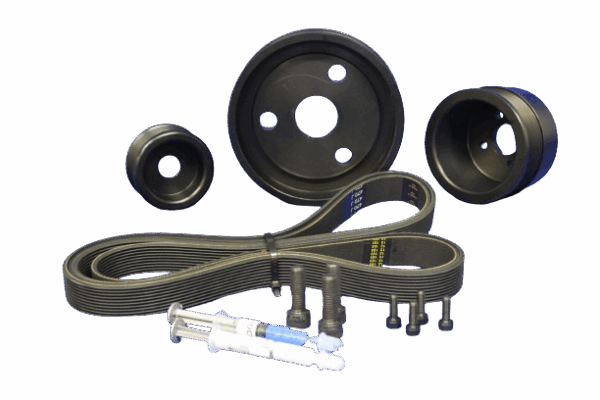

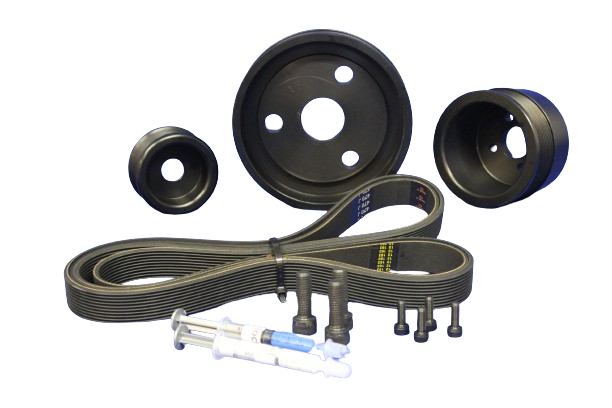

Volvo Marine Serpentine Pulley Kit for Engines: D2-50, D2-55, D2-55A and D2-75

Description

The Volvo Penta D2 50, D2-55A and D2-75 Serpentine Pulley Upgrade Kits are very easy to install allow two hours and 30 minutes the first time you do this simple installation. When purchasing any Electromaax marine alternator the pulley in this kit can be installed for you at the factory. The new serpentine (micro ‘V’) crank pulley simply slips over your current ½” v crankshaft pulley and is secured with the bolts supplied. The new serpentine water pump pulley simply replaces your original. When replacing the original O.E.M 55 or 60 amp, alternator with your new Electromaax high output marine alternator, be sure to read the wiring instructions prior to installing the unit.

Helpful install hints

1. When loosening the 4 water pump bolts leave the existing belt in place THEN undo the bolts. This way you can use the belt to stop the W/P pulley spinning.

2. Check the threads in the existing crankshaft pulley have not rusted. We find in most cases a little grease on our bolts clean the threads out if you carefully put them in half a turn and back. Alternatively, you can use the correct thread chase.

Additional information

Model	PK-V-D255, PK-V-D255A, PK-V-D275

Alternators

This popular Volvo Penta Marine D2 engine, and all other engines operate much smoother, quieter and virtually eliminate belt dust with a serpentine pulley upgrade kit. Additional benefit of an Electromaax kit is the ability to drive auxiliary devices ie: Seafrost refrigeration, engine driven water maker, second alternator, compressor etc, with the addition of a second crankshaft pulley. You can now safely operate the Electromaax Cruiser FM-12-120, Electromaax Cruiser FM-12-140 , Electromaax Cruiser FM-12-160 or the new Electromaax Cruiser FM-12-160 RR or the Electromaax Cruiser FM-24-70 RR marine alternators with this pulley kit. Contact us for further details.
