Description
Altion: Faster battery charging for Your Boat or RV
- Intelligent Charging, Maximum Battery Life: The Altion optimizes your power system, ensuring your batteries charge faster and last longer. Now with a powerful on-device Analysis tool, you can also explore historical performance, diagnose past events, and gain deeper insights into your system’s operation over time.

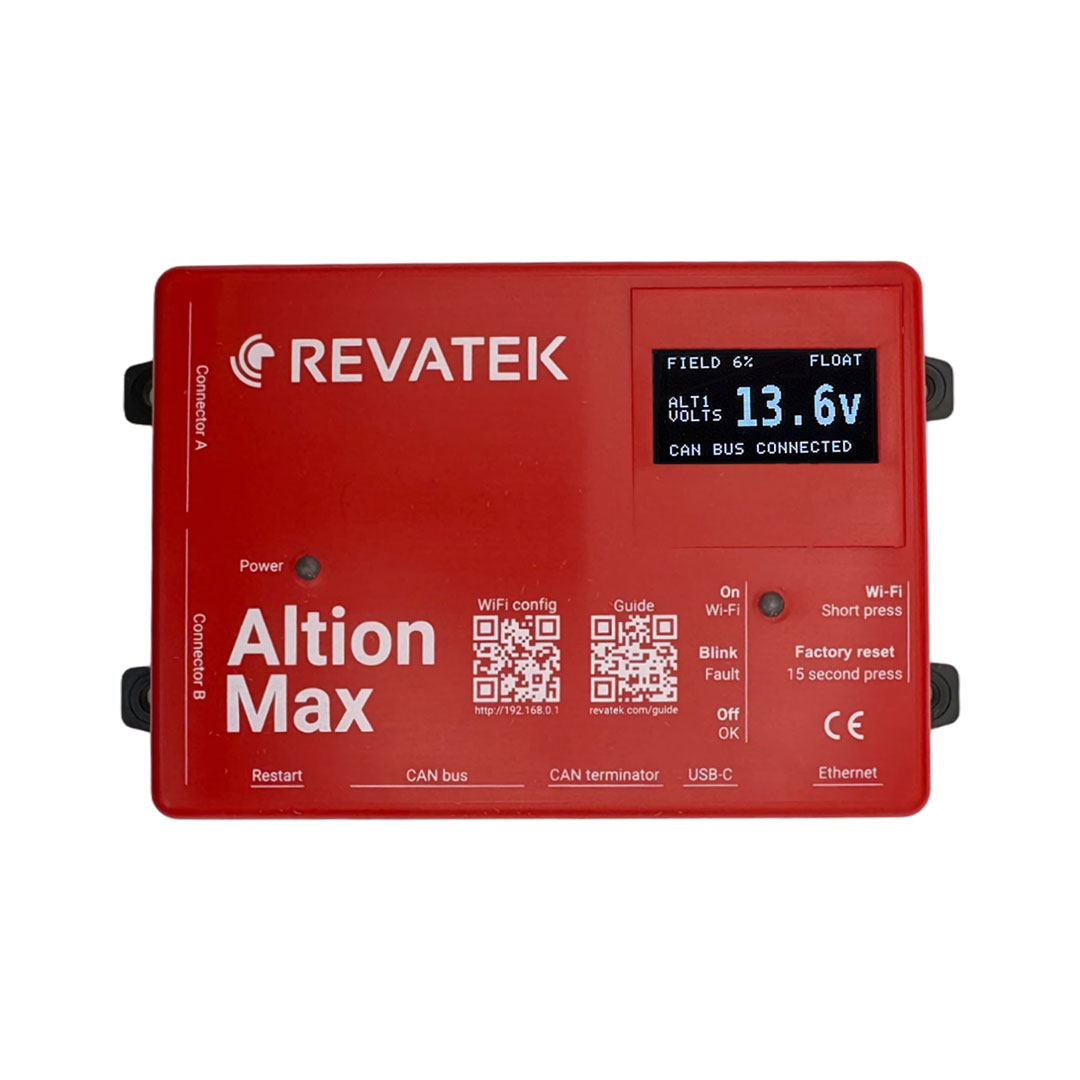

- Altion Max:
- The Altion Max offers advanced control for up to two alternators and two batteries. It also features a built-in screen to monitor system status, including state of charge, charge stage, voltage and more.
- Complete Installation Kit: The included wiring harness makes installation simple, with everything needed for standard marine/RV setups or van installations. Includes temperature sensors and CAN bus adapters for seamless integration with your boat or RV. It is compatible with both P- and N-Type alternators. The modular connectors allow for easy customization and future modifications.
Key Differentiators
- 20 – 35% Faster Charging: Using excess engine power.
- Universal Compatibility: Works with all major battery chemistries (lead-acid, lithium) and 12-48V systems (8.5-60V operating range).
- Dual Alternator Control: Independently regulates two alternators with a single device (Altion Max).
- Dual Battery Bank Charging: Charges and manages two independent battery banks, even with different voltages and chemistries (Altion Max).
- App-Free Wi-Fi Connectivity: Easy setup and monitoring via a web-based interface accessible from any smartphone, tablet, or laptop. No app required.
- Automatic Software Updates: Automatically downloads and installs the latest software, keeping it up-to-date. No user intervention required.
- Boost Mode: Harnesses the full power of the alternator to charge the batteries when the Altion senses that the engine has excess power available across the full RPM range.
- Simple Setup: 5-10 minute configuration with preset battery profiles and customizable settings.
- Integrated OLED Display: Provides real-time system status and monitoring information at a glance, including voltage, current, temperature and charging status (Altion Max).
- Advanced On-Device Analysis Tool: Access detailed historical data directly on the regulator. Visualize performance trends, review system event logs (faults, configuration changes), and export data for in-depth analysis – all without needing an internet connection or separate software.
- Comprehensive Wiring Harness Included: Simplifies installation with pre-made, user-configurable connectors, UL 1426/ABYC compliant tinned marine wire, and adapters for CAN Bus (RV-C, NMEA 2000, Victron).
- Compact Size: Easily installs in tight spaces (5.1 x 3.1 x 1.2 inches), 70-85% smaller than competing products.
Includes
- Altion Max Alternator Regulator

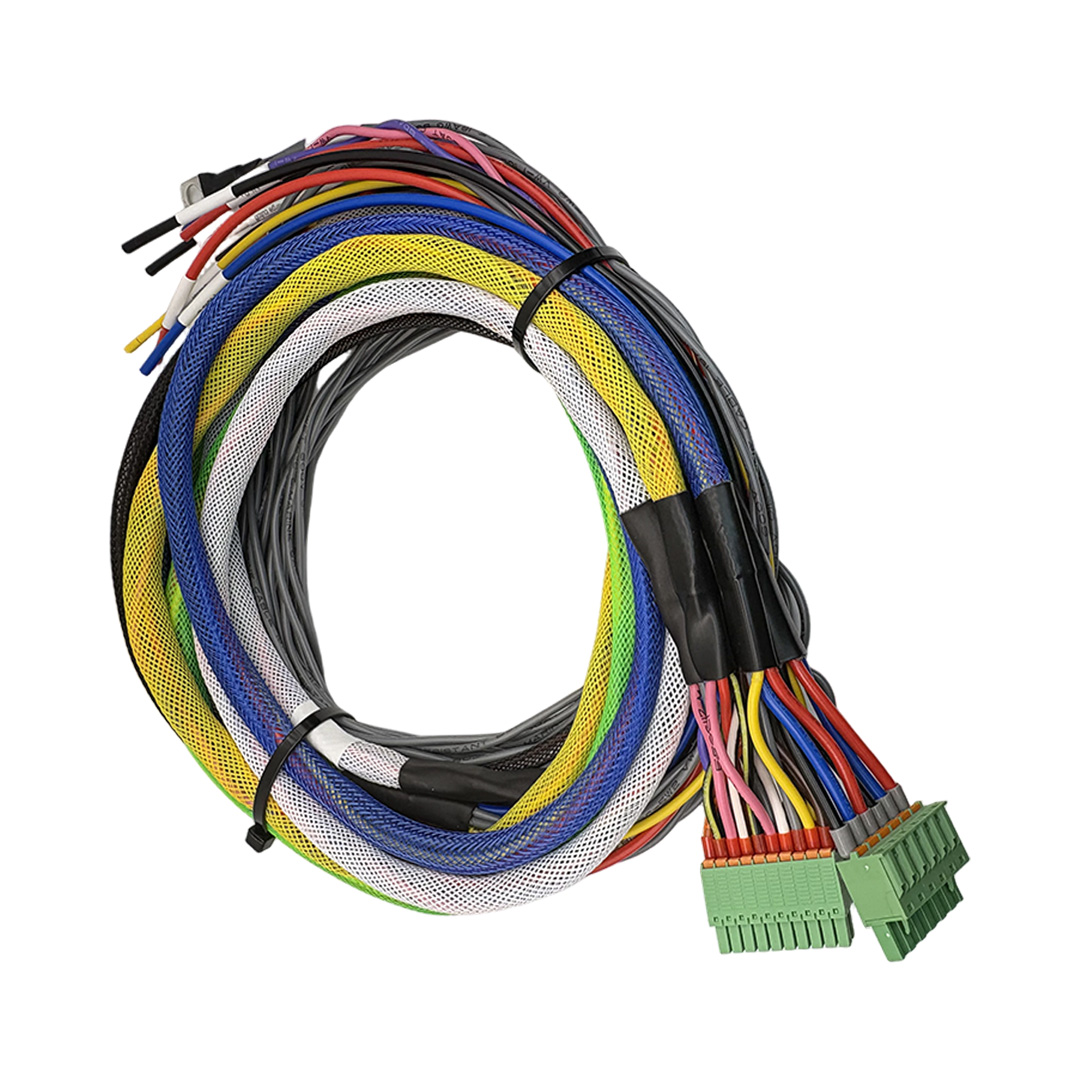

- Wiring branches for alternator, battery, ignition panel, and CAN bus
- Alternator temperature sensor
- Battery temperature sensor

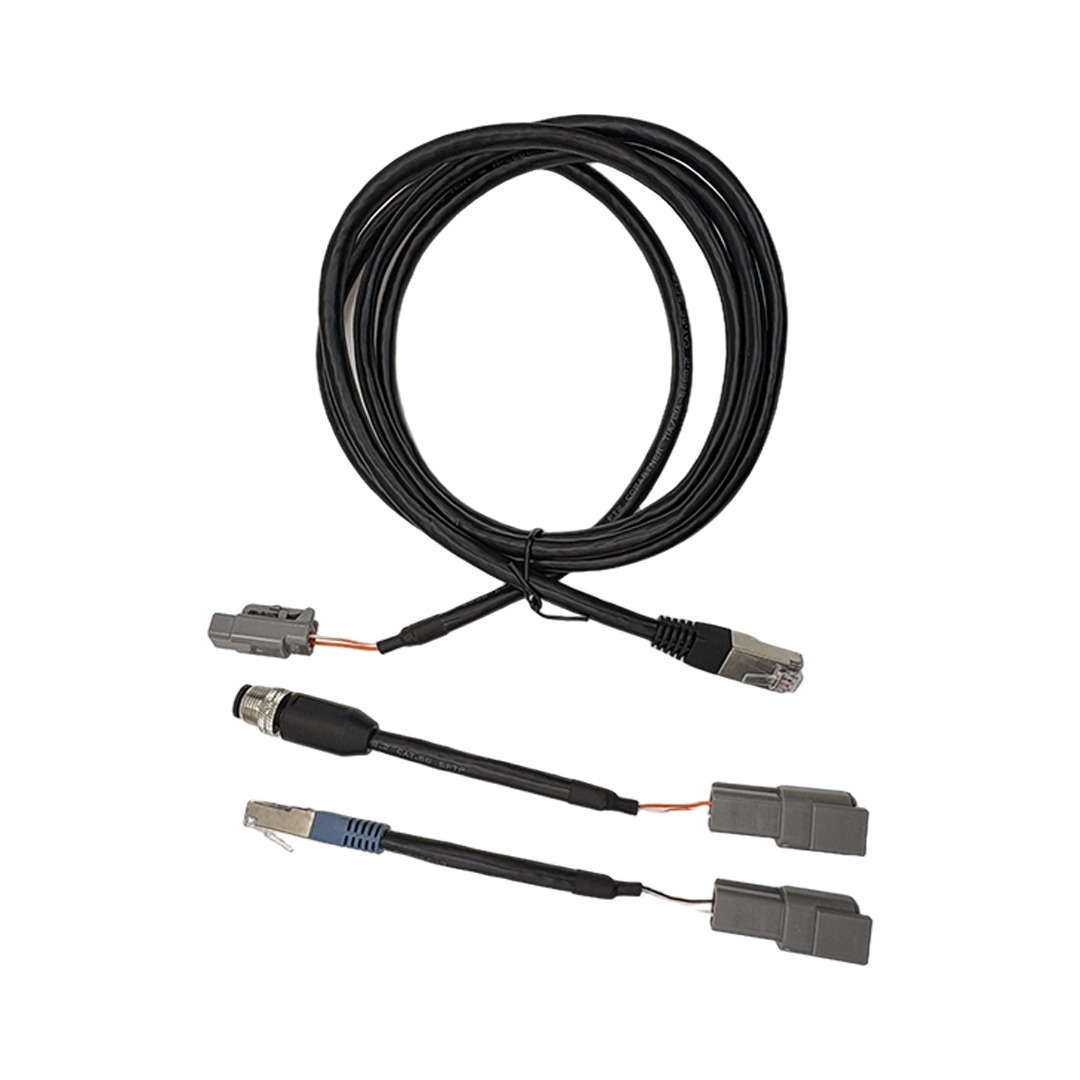

- CAN bus: RV-C RV networking DTM connector
- CAN bus: RV-C to NMEA 2000 marine networking M12 adapter
- CAN bus: RV-C to Victron Cerbo adapter
- Mounting screws (4x)
- Rubber vibration dampening washers (4x)
- Quick start card
- Revatek sticker
